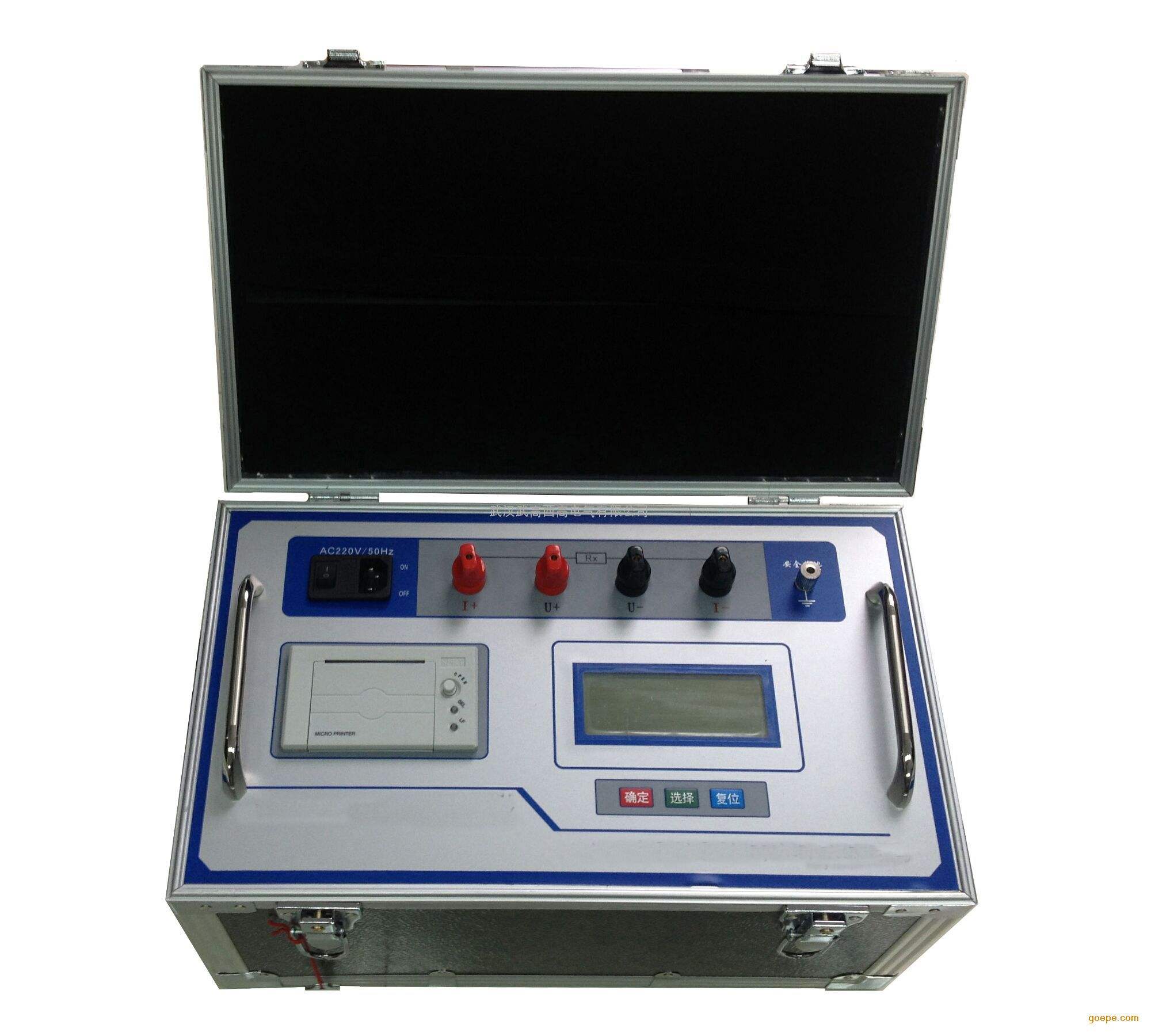

GYKZ-40A DC resistance tester

Online ContactContact us
Recommended Products
PRODUCTS/ PRODUCTS
TECHNICAL ARTICLE/ TECHNICAL ARTICLE
  1. How to choose the power record analyzer?
  2. What are the precautions when purchasing the ＂Ins
  3. How to choose the voltage level of the ＂ultra-low
  4. What are the specifications and models of the ＂SF
  5. How to use ＂portable recorder＂ correctly in hig
Product Details
          Technical Specifications：

           Parameters                  Specs          Remarks
           Test Current   2.5A，5A，10A，20A，40A                 /
           Test Range          2.5A：10mΩ～8Ω                   /
           5A：　1mΩ～4Ω                 /
           10A： 1mΩ～2Ω                 /
           20A： 1mΩ～1Ω                 /
       40A： 1mΩ～500mΩ                 /
              Accuracu            ±0.2%(full scale)                 /
           Data stored                      255                 /
               Display                      LCD      4 1/2 digit for             resistance display
           Resoluation                    0.1μΩ                 /
        Power Supply    AC220V±22V，50Hz±2 Hz         Fuse 10A
 Max Power Consumption                   1200W    Test current =10A
    Operating conditions       ambient T：0℃～40℃                 Humidity：≤80%                 /

           Product Features：
  1. Stable output of 40A DC current, fast and stable test
  2. Large-capacity CPU can store 255 sets of measurement results
  3. Large screen LCD display, full Chinese menu guide operation, intuitive and simple
  4. The direct resistance tester has automatic discharge and discharge indication functions
      to reduce misoperation and ensure the safety of equipment personnel
  5. Large output current, light weight, vertical chassis, easy to use on site
  6. Comes with a panel-type micro printer, which can print the measurement results in Chinese
  7. The stored results can be checked and printed
