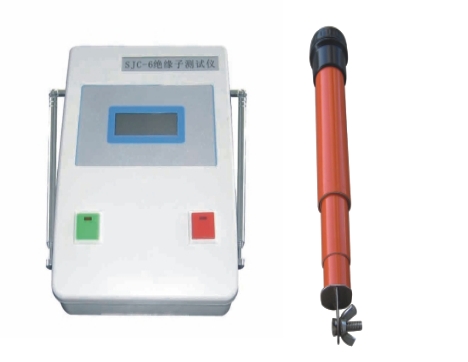

SGC-6 Insulator Zero Tester
Technical Specfications:
Measuring range |
Salt deposit density |
0.0001mg/cm2~9.9999mg/cm2 |
temperature |
0℃~100℃ |
|
conductivity |
0~200000μs/cm |
|
Basic tolerance |
Measuring salt density |
Resolution 0.0001 mg / cm2 |
Full scale accuracy |
± 2% |
|
measure temperature |
Resolution 0.1 ℃, accuracy ± 0.5 ℃ |
|
Measuring conductivity |
Resolution 0.01μs / cm |
|
Ambient temperature |
0℃~60℃ |
|
environment humidity |
<90% |
|
Volume and weight |
Overall chassis size |
356mm*260mm*133mm |
Total Weight |
about 2.5kg |
Product Features:
1. With automatic range switching function, fast measurement speed (2.5s / time)
2. Large measuring range, salt deposit density range 0.0001mg / cm2 ~ 9.9999mg / cm2
3. The Chinese and English interface can be switched independently
4. Adopt 480 * 272 color touch LCD screen
5. Can directly display and print salt deposit density, conductivity, temperature, pollution level, uniform creepage ratio
6. Automatic temperature compensation, direct display of standard conductivity and equivalent salt at 20 ℃ (ESDD)
7. It has the function of automatically removing the salt content of the original solution, which reduces
the requirements for the cleaning solution.
8. Automatically convert salt deposit density without charge (ESDD) to salt deposit density with charge (ESDD)
9. Can store 100,000 sets of records, and can export the records to U disk or print them through the printer
10. You can view, delete, export a single record, or delete all records
11. Built-in large-capacity rechargeable lithium battery (2600mAh), suitable for field use
